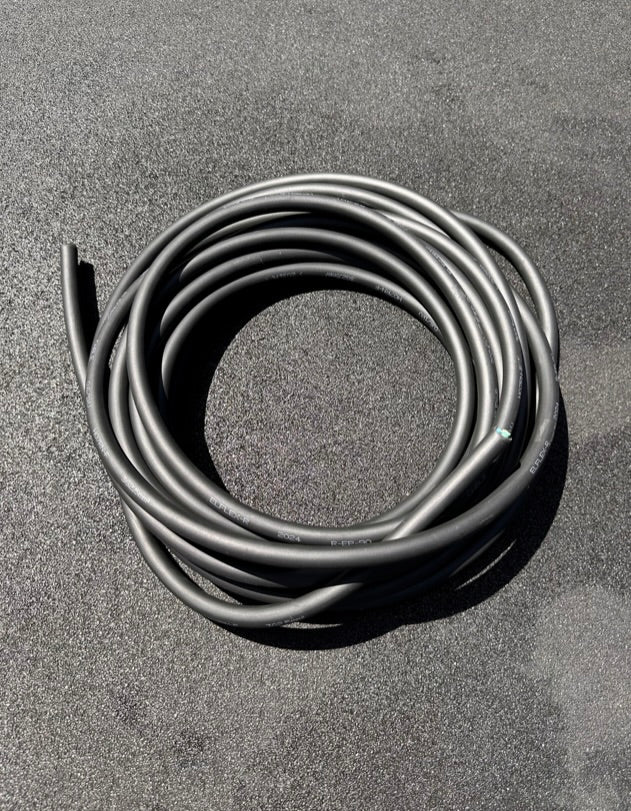

Super Flex Single Phase 240v Cable

Super Flex Single Phase 240v Cable

3 core

2.5mm2

Note: Sold Per Meter

Specifications:

Typically used for flexible connections to motors, generators, compressors and portable equipment, construction site leads, wet or oily environments, mine sites and quarries, submersible pumps, limit switches and many other applications.

Made of H07 Grade Rubber Flex which is sheathed in a Black Insulation that is Chemical/Oil Resistant and Flame Retardant

• Rated to 27 Amps
• Cable CSA 2.5mm2
• Nominal Cable Diameter 11.1mm
• Conductors - Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• Insulation - Ethylene-propolene rubber (EPR) R-RP-90 90°C Conductor
• Inner Sheath - EPDM Rubber Outer Jacket - Chlorinated Polyethylene, CPE rubber compound.
• Rated Voltage - 0.6/1kV
• The cable is submersible to 200mtrs, Suitable for fresh water, salt water, sewage/contaminated water. UV,
  Sunlight and weather resistant. Flame retardant to IEC 60332-1-2:2004,EN60332-1-2-2004.
• Operating Temperature range -25°C to +90°C (mobile) -40°C to +90°C (fixed)
• This flex has full Australian Approvals.
