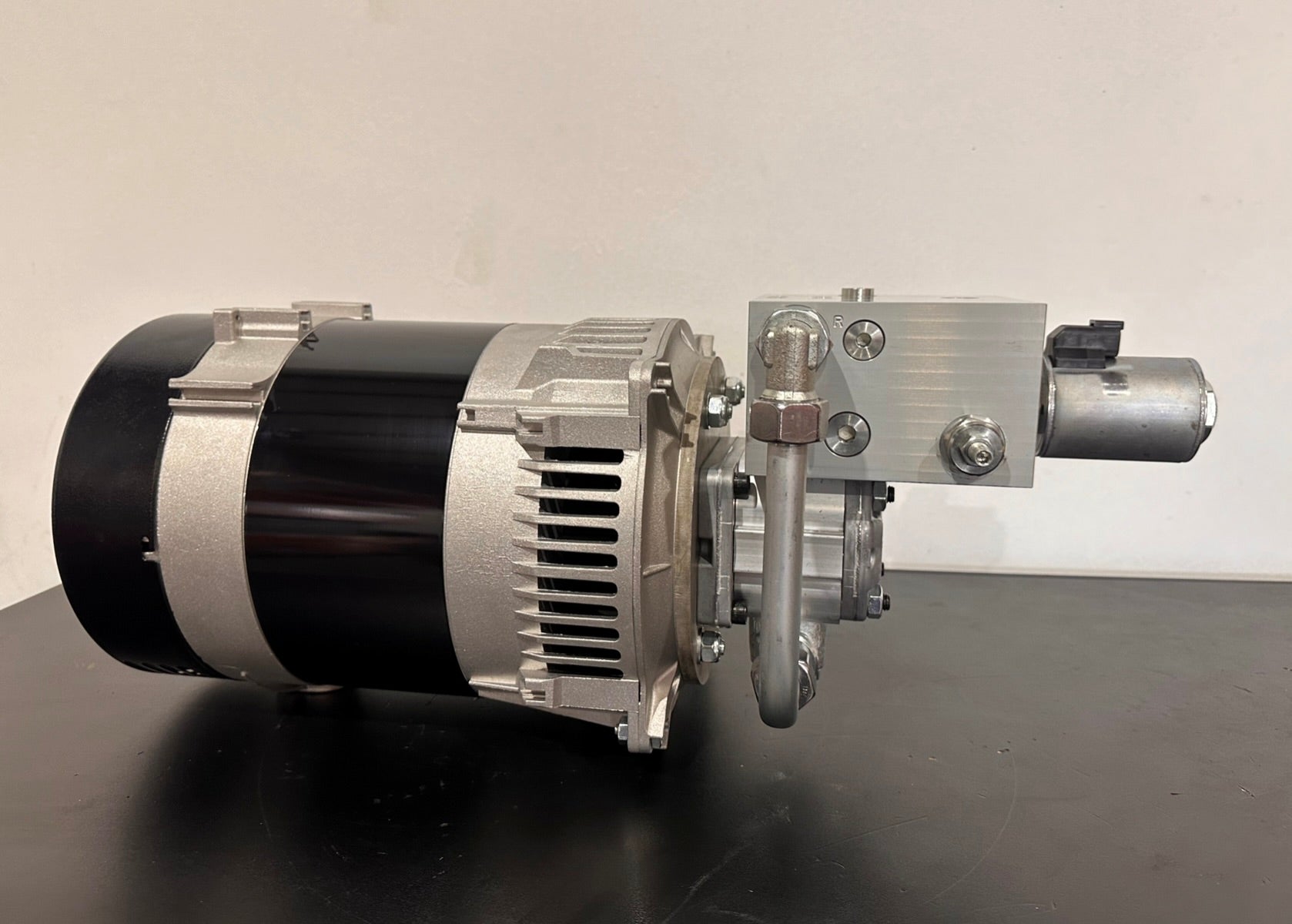

7 Kva Generator Basic Kit

Kit Inclusions.

7 KVA Generator – Single Phase, 240V, 50Hz, 30.4 Amps

7cc Hydraulic Motor – Matched to generator for optimal performance

Hydraulic Manifold Assembly – Common design across 2.5 to 12 kVA range

Our standard hydraulic generator utilises the same manifold across the range from 2.5kVa up to 12kVa with a maximum regulated flow of 37.9 l/min and a maximum operating pressure of 210 bar.

Our smallest AC generator rated at 2.5kVa incorporates a 4cc hydraulic motor requiring 12 l/min. For higher power ratings larger motors are utilised or where customer preference is for higher flow and lower pressure. We utilise the same hydraulic assembly for both fixed and variable displacement pump systems, there is a LS (Load Sense) port on the manifold into which the LS line can be connected.
